WiNG-RXT PoE Kit

RLE provides a power over ethernet (PoE) kit designed for use with our WiNG-RXT device. This kit allows the WiNG-RXT to be powered by PoE devices including network switches and PoE injectors.

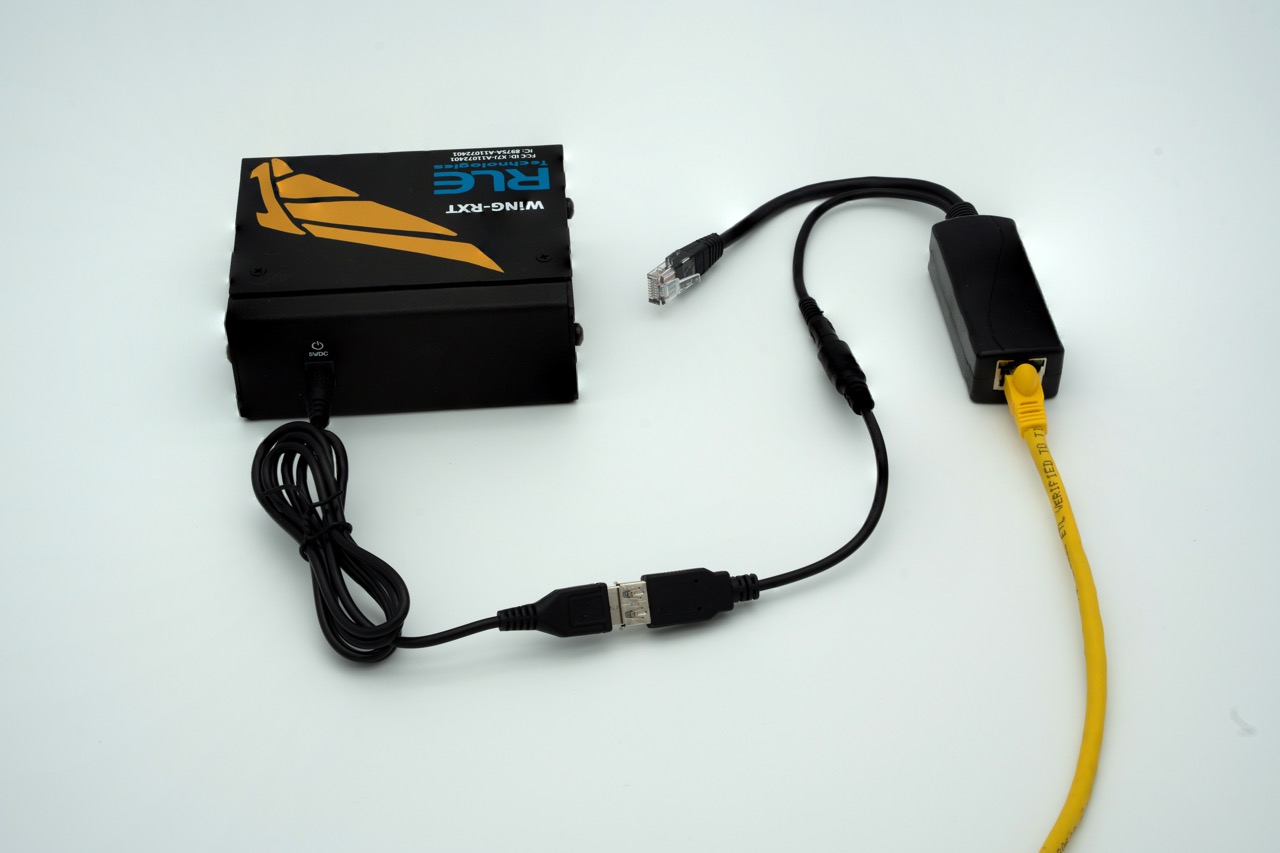

The RXT-POE-KIT contains the components necessary to connect the WiNG-RXT to a PoE source. Note that a PoE source or injector is not included with this kit. The kit contains:

  • One 48VDC PoE input to 5VDC/15W USB output power converter, and a USB to barrel connector cable and the appropriate barrel plug adapter to connect the power converter to the WiNG-RXT.

PoE Power Converter Specifications

PoE Input: IEEE 802.3af/at or Passive PoE (36 – 60VDC)

Output

  • Voltage: 5VDC USB
  • Current: 3A
  • Power: 15W
  • DC Connector: USB Socket
  • Cable Length: 6” (153mm)

Load Reg and Noise: 5%

Line Reg and Ripple: 1%

Ethernet Speed: 10/100MB

Efficiency: 75% min

Isolation Voltage: 1500VDC

Isolation Resistance: 100M Ohms Minimum

Operating Environment

  • Temperature: -13°F to 122°F (-25°C to 50°C)
  • Humidity: 5% – 90% non-condensing

Storage Temperature: -40°F to 176°F (-25°C to 80°C)

Dimensions: 1.8”W x 2.6”L x 1”H (45mm x 65mm x x26mm)

Weight: 2.2oz (62g)

Certifications: RoHS Compliant; EMC Standards: FCC Class B; NE55022 Class B



WiNG-RXT USB A to Barrel Connector Specifications

Connector: USB 2.0 A Type Male to DC 5.5mm x 2.5mm DC 5V.  Separate 2.5mm to 2.1mm barrel connector adapter included with kit.

Cable Length: 3.3’ (1.0m)
